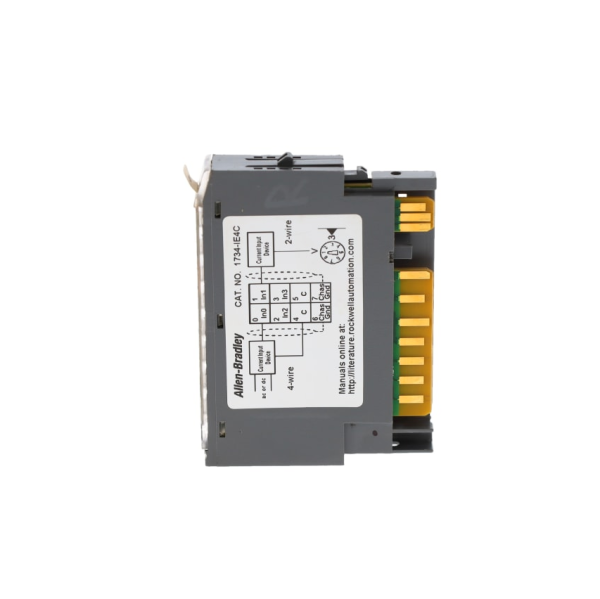

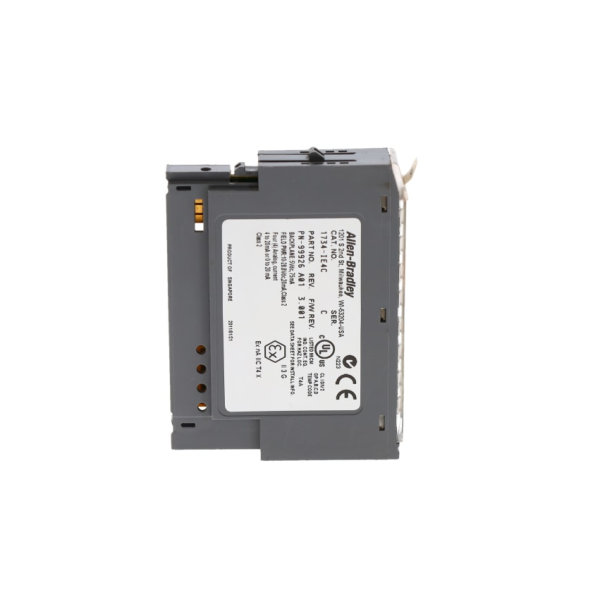

1734-IE4C

Original price was: $261.90.Current price is: $163.00.

The Allen-Bradley 1734-IE8C is a POINT I/O Analog Input Module. It has Four (2) single-ended, non-isolated, Current input module with Delta Sigma Conversion Type with a Power Dissipation of 0.75 Watts at 28.8 Volts DC. This Analog Input Module has an Open Enclosure Type Rating and compatible with any POINT IO communication adapter.

Documentation

RESOURCEPUBLICATION NUMBER
Installation Instructions1734-IN032
User Manual1734-UM016
GTIN: 10612598345417 SKU: 1734-IE4C Categories: ,

1734-IE4C

Technical specifications for 1734-IE4C

ManufacturerRockwell Automation
BrandAllen-Bradley
Part Number/Catalog No.1734-IE4C
SeriesPOINT I/O
Module TypeAnalog Input Module
InputsFour (4) single-ended, non-isolated
Key Switch Position3
Signal TypeCurrent
Enclosure Type RatingOpen
Input Signal Range4…20 mA 0…20 mA
Conversion TypeDelta Sigma
Absolute Accuracy0.1% Full Scale @ 25 °C
Input4-Point
Data formatSigned Integer
UPC10612598345417
Resolution16 bits – over 0…21 mA 0.32 ?A/cnt
Terminal base1734-TB3, 1734-TB3S wiring base assembly
Power Dissipation0.55 W @ 28.8V DC
Thermal Dissipation2.0 BTU/hr @ 28.8V DC

Description

The Allen-Bradley 1734-IE4C module is a POINT I/O 4-channel high-density current input module. It is an analog module that can sustain channel-level diagnostics (electronic bits and LED indicators). It also features Delta-Sigma conversion of analog data to signed integer format, channel-level data alarming (4 set-points per channel); and scaling to different engineering units. This adapter supports the rack-optimized connections between CompactLogix controllers or ControlLogix and discrete I/O modules in the same chassis. via the backplane, it can also create direct connections between the internet-capable connection originator and input/output modules.

The 1734-IE4C analog input module has 4 inputs and a signed integer data format. It has an input signal range of 4 to 20 mA and 0 to 20 mA. Its input resolution is 16 bits at 0 to 21 mA, 0.32 microA/cnt. It has a maximum power dissipation of 0.6 Watts and a thermal dissipation of 2.0 BTU/hour, both at 28.8 Volts DC voltage. Its key switch position is 3, and the compatible thermal base units include the 1734-TOP, 1734-TOPS, 1734-TB, and the 1734-TBS. The 1734-IE4C is grounded via the DIN rail to chassis ground. To ensure proper grounding, use DIN rails that are zinc-plated yellow-chromate steel. Secure the DIN rail to the mounting surface approximately every 7.8 inches or 200 millimeters and use the end-anchors correctly. The installation of the 1734-IE4C module can be done before or after the base is secured. The insertion or removal of the module should be done while backplane power is switched off to avoid the occurrence of electrical arcs.

The 1734-IE4C is an Allen-Bradley POINT IO module that features Four (4) single-ended, analog input modules that is compatible for electrical signals such as 0 to 20 mA or 4-20 mA.

This module is used to interface with process variables represented by external analog signals. The external analog signal is passed through a converter using Delta-Sigma conversion. Using 16-Bit Signed Integer data format, the processed data is given a new value ranging from -32768 to +32767. This integer value is also known as Raw value which is used by the Programmable Logic Controller (PLC) to process logic.

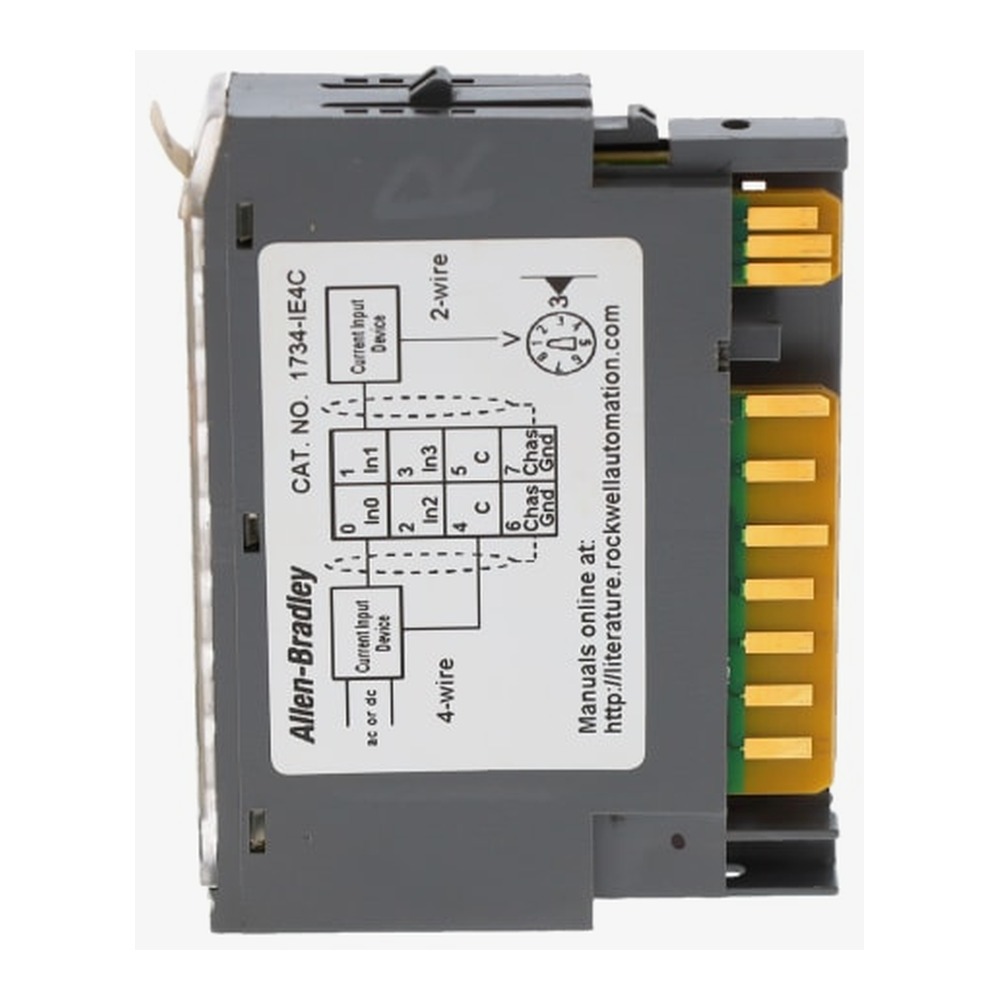

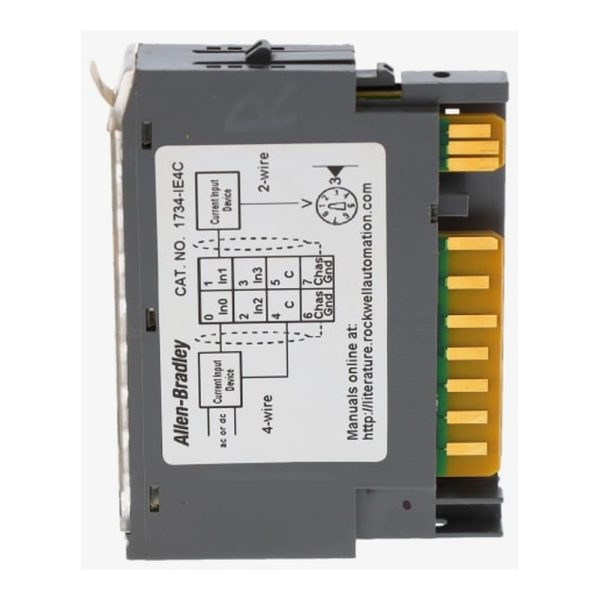

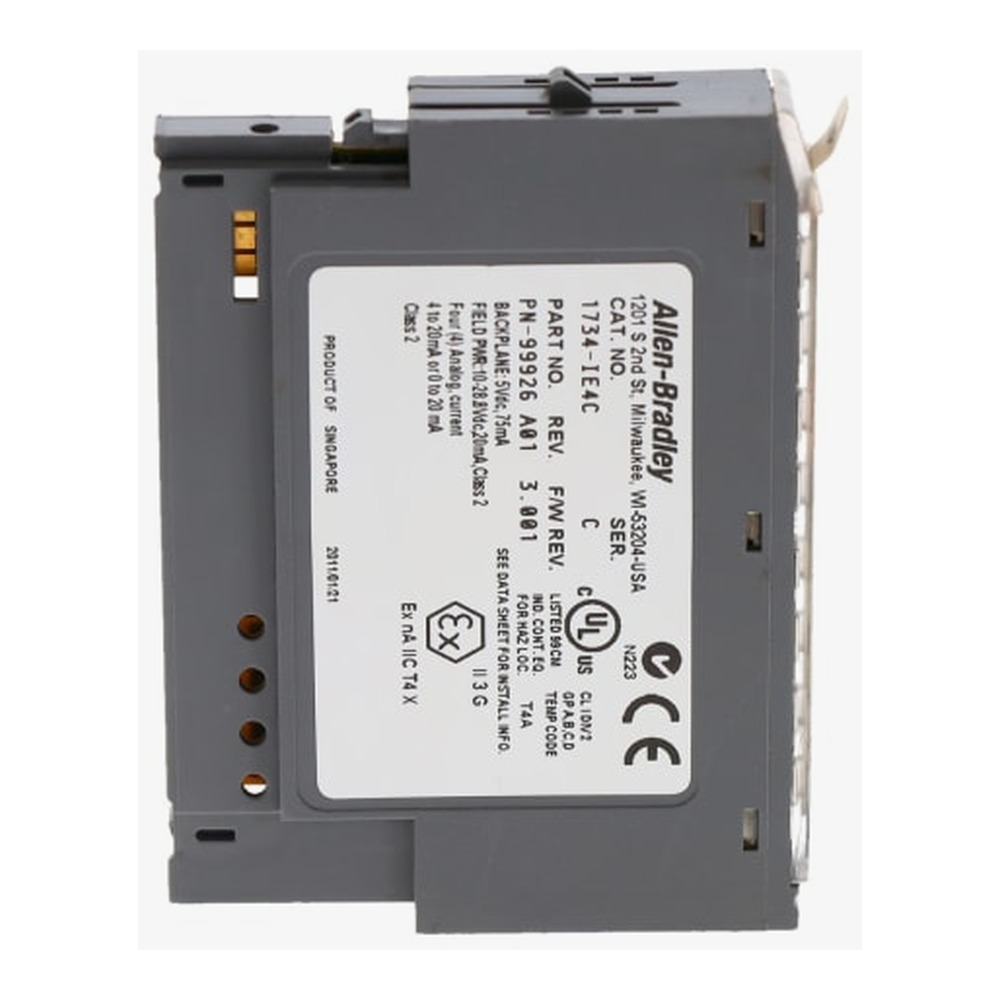

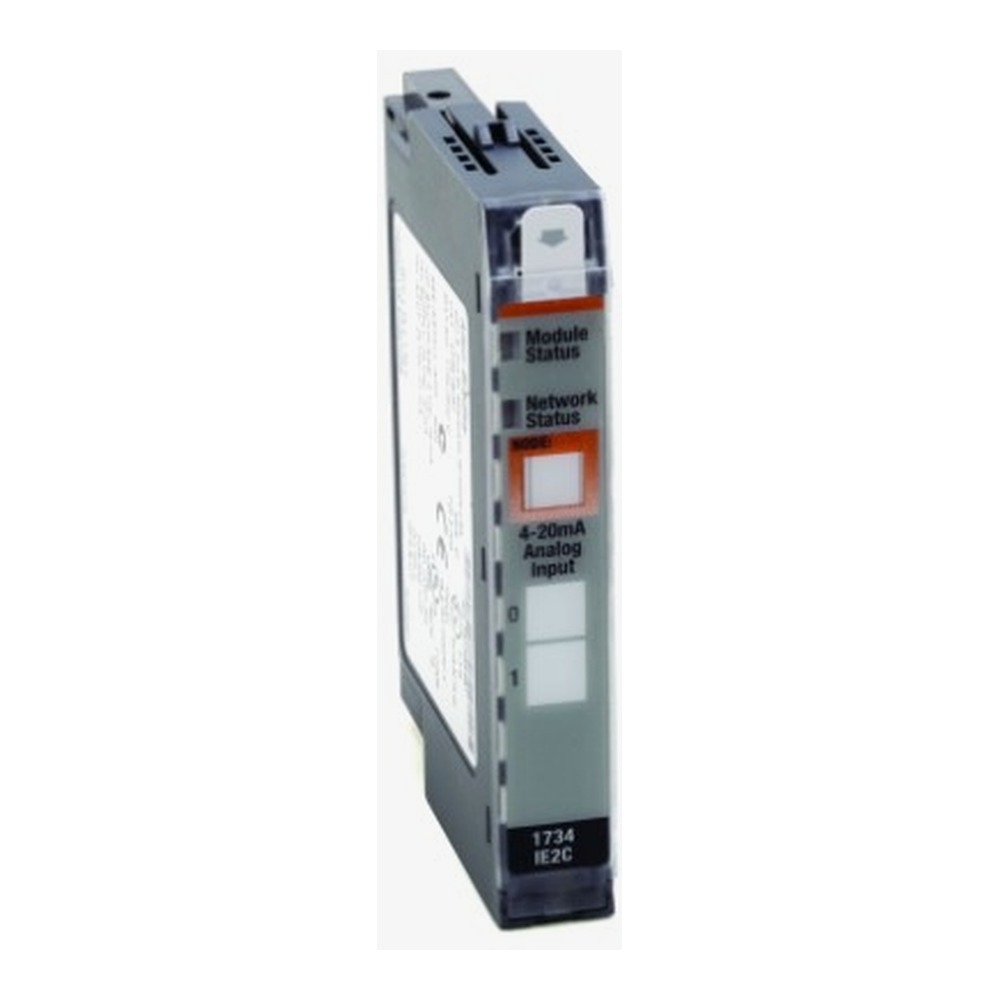

This module has an intuitive front panel that provides quick information and diagnostics to the module’s operation. It has an integrated Module status LED that provides information to whether active power supply is detected by the module, Device operating normally, needs commissioning due to incorrect configuration, recoverable fault or a non-recoverable fault. The Network status LED indicates if the device is online, online without active connection and online with active connections. The channel status LED indicates if the module is in CAL mode, Normal or out of range.

Compatible terminal base for this analog input module are 1734-TB or 1734-TBS POINT I/O Two (2) piece terminal base or 1734-TOP or 1734-TOPS POINT I/O one-piece terminal base. The 1734-IE8C has a dimension of 56.0 x 12.0 x 75.5 mm (2.21 x 0.47 x 2.97 in.) and weighs 36 g (1.235 oz). Provided the recommended terminal base, use signal wires with 0.25…2.5 mm. sq. (22…14 AWG) solid or stranded copper wire rated at 100 ° C (212 ° F), or greater, 1.2 mm (3/64 in.) insulation.

Revisions

Revision Part #Also known as
1734-IE4C Ser A1734-IE4C/A, Series A, Rev A
1734-IE4C Ser B1734-IE4C/B, Series B, Rev B
1734-IE4C Ser C1734-IE4C/C, Series C, Rev C

Alternative names

  • 1734-IEAC
  • 1734IE4C
  • 1734IEAC
  • 173A-IE4C
  • 173A-IEAC
  • 173AIE4C
  • 173AIEAC
  • L734-IE4C
  • L734IE4C
  • L73A-IEAC
  • L73AIEAC

Frequently asked questions

What is the signal range of the 1734-IE4C POINT I/O Analog Input Module?

The 1734-IE4C Analog Input Module has two signal range options, either 4 to 20 milliamps or 0 to 20 milliamps.

Which terminal base units are compatible with the 1734-IE4C POINT I/O Analog Input Module?

The following terminal base units are compatible with the 1734-IE4C POINT I/O Analog Input Module: 1734-TB, or 1734-TBS.

What is the input resolution for the 1734-IE4C POINT I/O Analog Input Module?

The 1734-IE4C Analog Input Module has an input resolution of 16 bits, over 21 milliamps.

Technical notes

The Allen-Bradley 1734-IE4C is a POINT I/O Analog Input Module. It has 2 single-ended, non-isolated, voltage Inputs and a Delta Sigma Conversion Type with a Power Dissipation of 0.75 Watts at 28.8 Volts DC. This Analog Input Module has an Open Enclosure Type Rating.

Weight0.5 kg
Dimensions8 × 6 × 15 cm
